Products > Schrader Automotives > Large Bore Valve
|
SCHRADER PART NO. |
VERTICAL HEIGHT (mm) (Inches) |
|
| 670 | 41.275 | 1.625 |
|
SCHRADER PART NO. |
Bend Angle |
Effective Length "L" (mm) (Inches) |
|
| 650 | 80° | 79 | 3.11 |
| 651 | 90° | 119 | 4.685 |
| 658 | 80° | 139.7 | 5.5 |
4361 S Shock Strut Valve
2755 High Pressure Inflating Connection

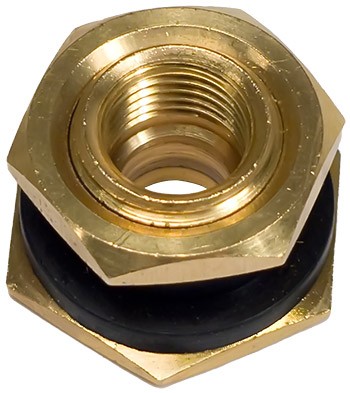

Tubeless spud( TR Sp2)

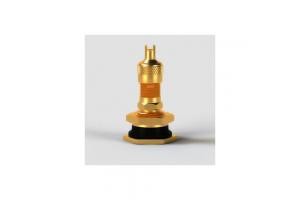

Tubeless Non Swivel Valve
Large bore Valves
Has a same feature as swivel type valve except that it is a straight non-swivel type valve. The valve indicated above is normally supplied with Schrader 650-197 (TR SP2) spud but without the standard accessories. In case only the stem without spud is to be ordered add suffix '-198' to the Schrader’s Part No. i.e. 670-198.
Tubeless Single Bend Swivel Valve
High Pressure Valve and Inflating Connection
